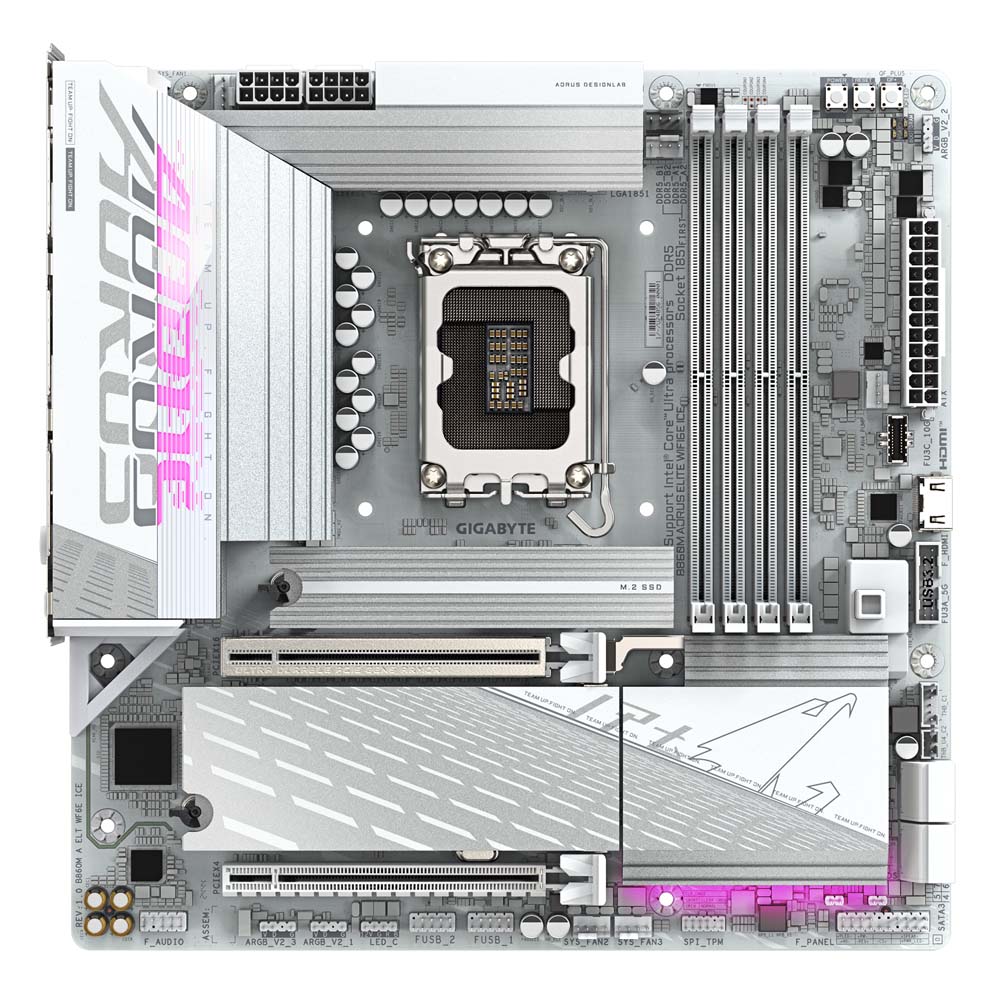

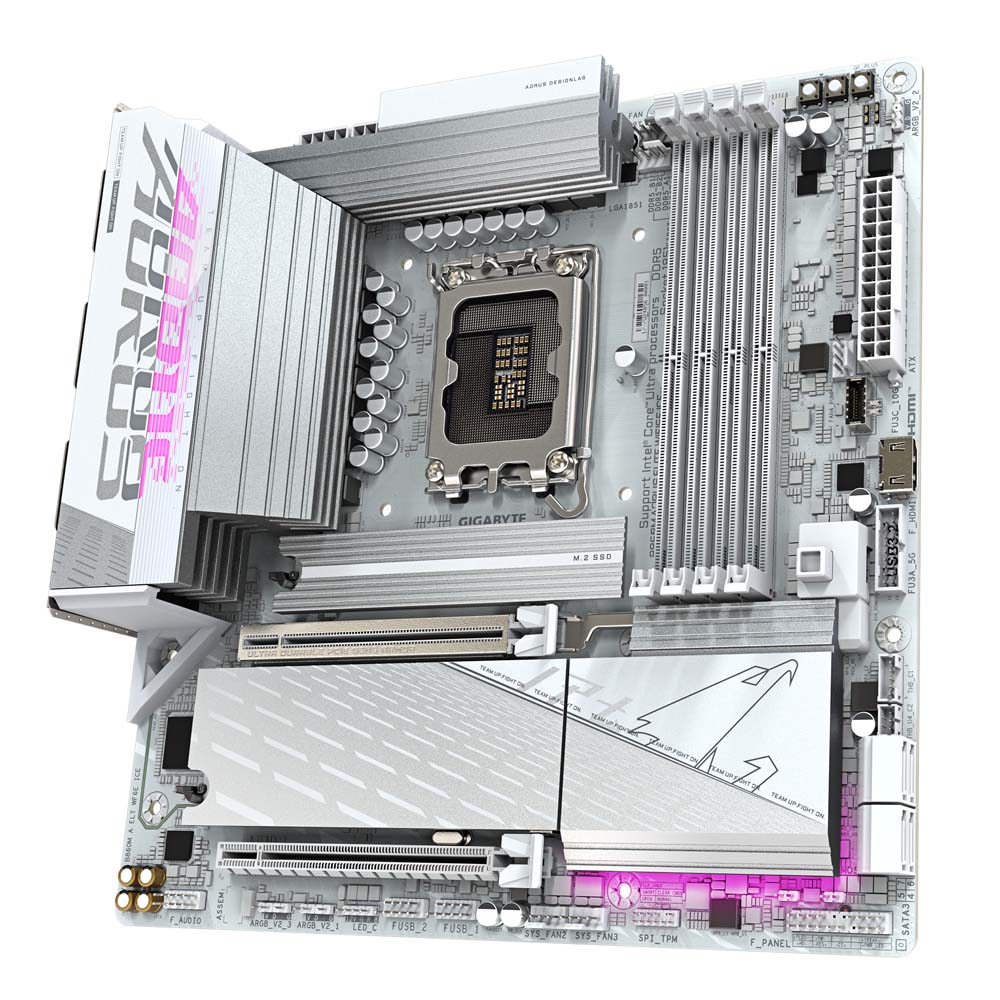

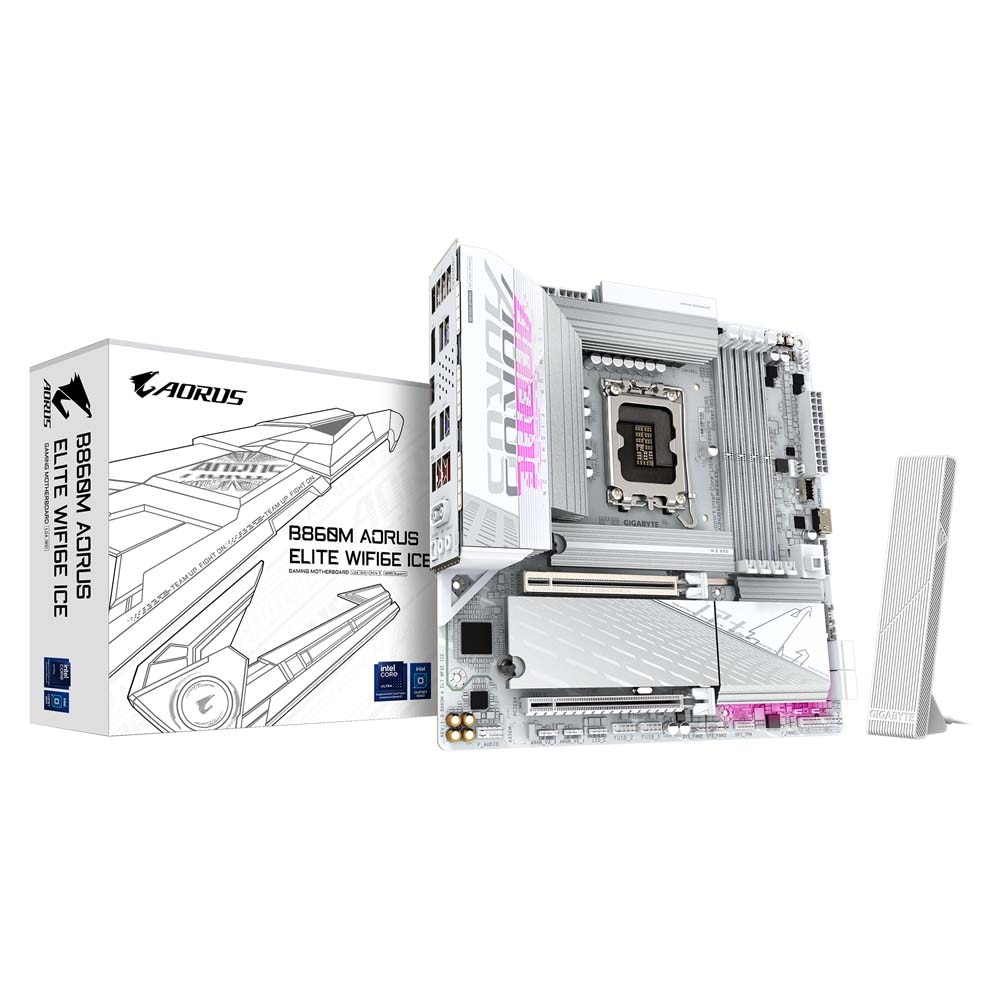

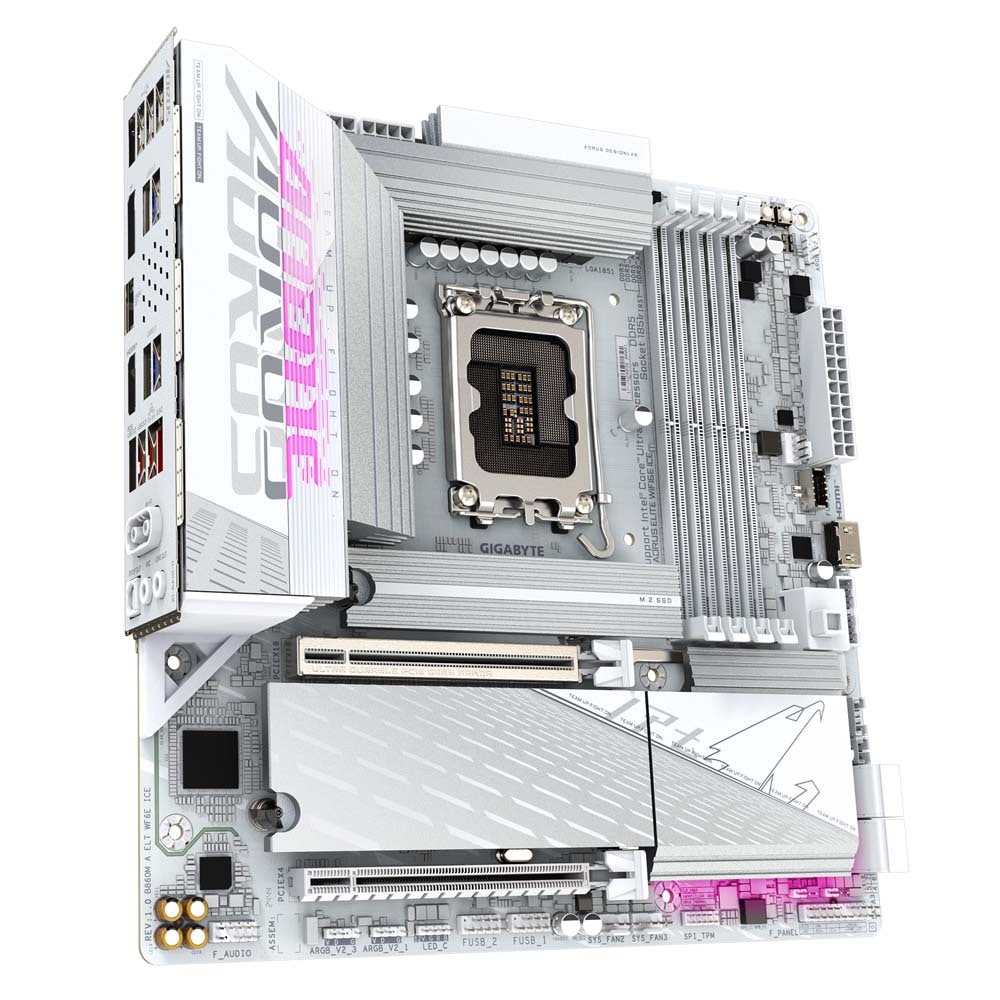

GIGABYTE B860M AORUS ELITE WIFI6E ICE Micro-ATXマザーボード｜B860M A ELT WF6E ICE
【安心の正規代理店品】
- メーカー名
- GIGABYTE
- 商品コード
- MB6666
31,800円(税込)
初期不良保証
〇在庫あり
商品説明
B860M AORUS ELITE WIFI6E ICE
[特徴]
・Intel Core Ultra プロセッサー (シリーズ 2) 対応
・12+1+2 デジタル Twin 電源フェーズ設計
・Dual Channel DDR5：4 スロット搭載 (XMP 対応)
・D5 Bionic Corsa によるメモリ性能強化
・AI Perfdrive：最適な BIOS プリセット・プロファイル

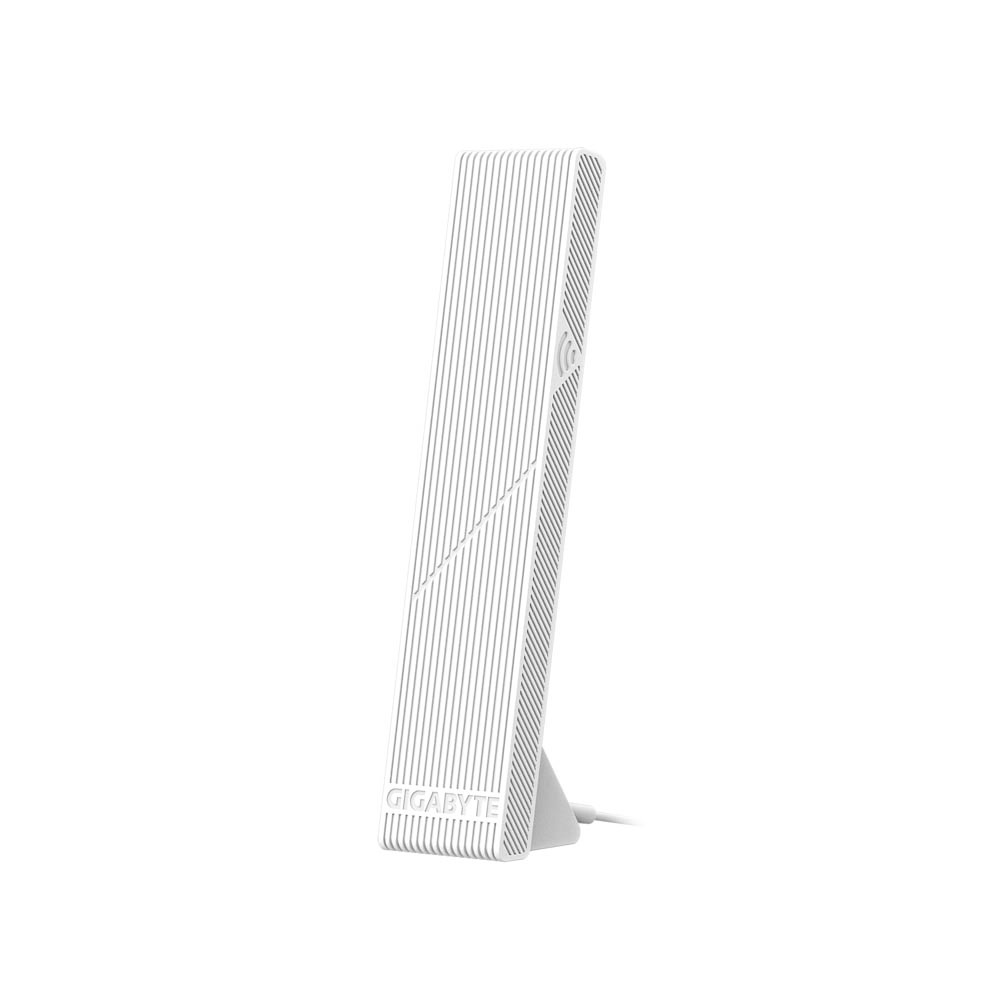

・WIFI EZ-Plug：Wi-Fi アンテナ線のワンタッチ着脱可能
・EZ-Latch Plus：ネジ不要 M.2 SSD 着脱可能
・EZ-Latch Click：ネジ不要 M.2 ヒートシンク着脱可能
・Sensor Panel Link：内蔵型ディスプレイ出力をオンボード搭載
・高速ストレージ：1*PCIe 5.0 x4 & 2*PCIe 4.0 x4 M.2 コネクタ
・優れた放熱性：VRM 用 Thermal Armor Advanced & M.2 Thermal Guard Ext. ヒートシンク
・高速ネットワーク：2.5 GbE 有線 LAN & Wi-Fi 6E
・充実した接続性：USB4 Type-C (DP-Alt 対応), HDMI & DisplayPort 搭載
・Q-Flash Plus 搭載
[仕様]
[特徴]
・Intel Core Ultra プロセッサー (シリーズ 2) 対応
・12+1+2 デジタル Twin 電源フェーズ設計
・Dual Channel DDR5：4 スロット搭載 (XMP 対応)
・D5 Bionic Corsa によるメモリ性能強化
・AI Perfdrive：最適な BIOS プリセット・プロファイル
・WIFI EZ-Plug：Wi-Fi アンテナ線のワンタッチ着脱可能
・EZ-Latch Plus：ネジ不要 M.2 SSD 着脱可能
・EZ-Latch Click：ネジ不要 M.2 ヒートシンク着脱可能
・Sensor Panel Link：内蔵型ディスプレイ出力をオンボード搭載
・高速ストレージ：1*PCIe 5.0 x4 & 2*PCIe 4.0 x4 M.2 コネクタ
・優れた放熱性：VRM 用 Thermal Armor Advanced & M.2 Thermal Guard Ext. ヒートシンク
・高速ネットワーク：2.5 GbE 有線 LAN & Wi-Fi 6E
・充実した接続性：USB4 Type-C (DP-Alt 対応), HDMI & DisplayPort 搭載
・Q-Flash Plus 搭載
[仕様]
| CPU | LGA1851 socket: Support for Intel ?? Core?? Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| チップセット | Intel ?? B860 Express Chipset |
| メモリー | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| 映像出力端子 | Integrated Graphics Processor-Intel?? HD Graphics support: - 1 x USB4?? USB Type-C?? port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time |
| オーディオ | Realtek?? Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| 有線LAN | Realtek?? 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| 無線 LAN | Intel?? Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek?? Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| 拡張スロット | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| ストレージインターフェース | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | CPU: - 1 x USB4?? USB Type-C?? port on the back panel Chipset: - 1 x USB Type-C?? port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| 内部入出力コネクタ | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C?? header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt?? add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper * Actual support may vary by CPU. |

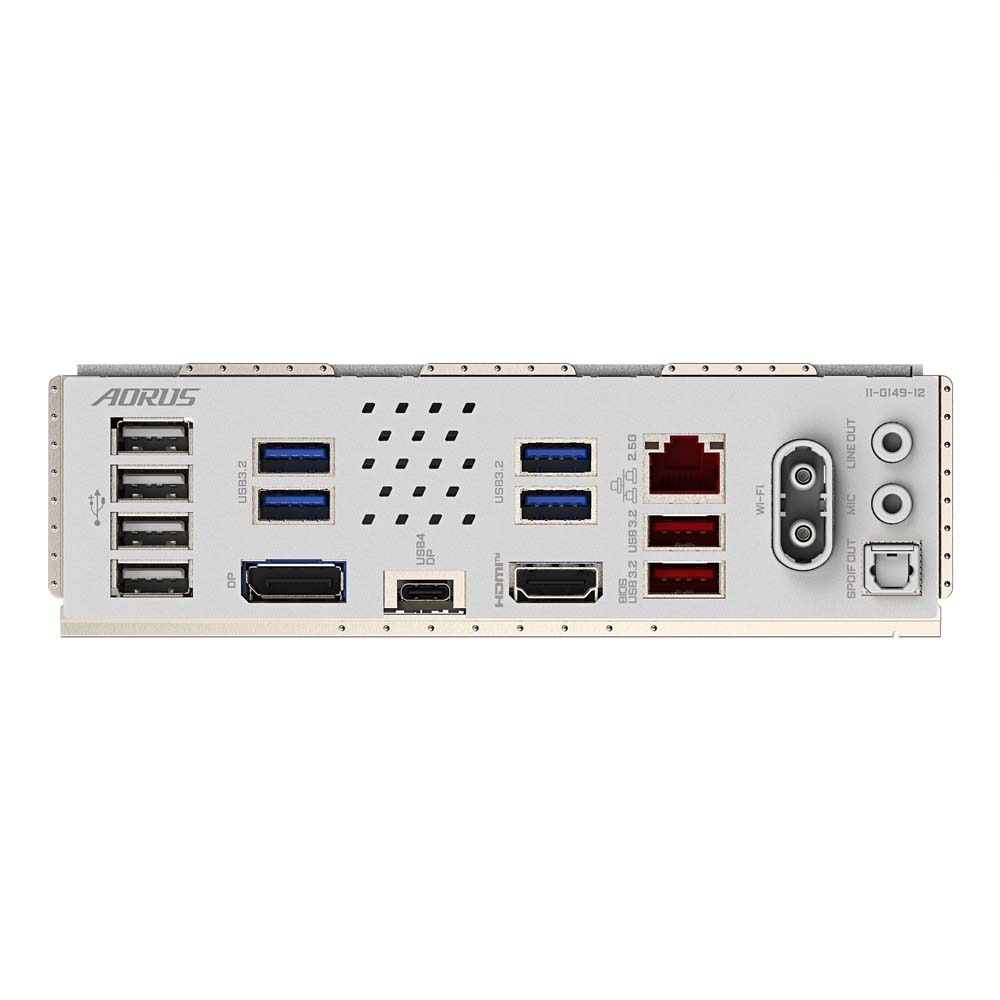

| バックパネルコネクタ | 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x DisplayPort* 1 x USB4?? USB Type-C?? port (DisplayPort*) 1 x HDMI port* 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector * Actual support may vary by CPU. |
| I/Oコントローラー | iTE?? I/O Controller Chip |
| ハードウェアモニター | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| 独自機能 | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| バンドルソフトウェア | Norton?? Internet Security (OEM version) LAN bandwidth management software |
| 対応 OS | Support for Windows 11 64-bit |
| フォームファクター | Micro ATX Form Factor; 24.4cm x 24.4cm |
JAN：0889523046548
