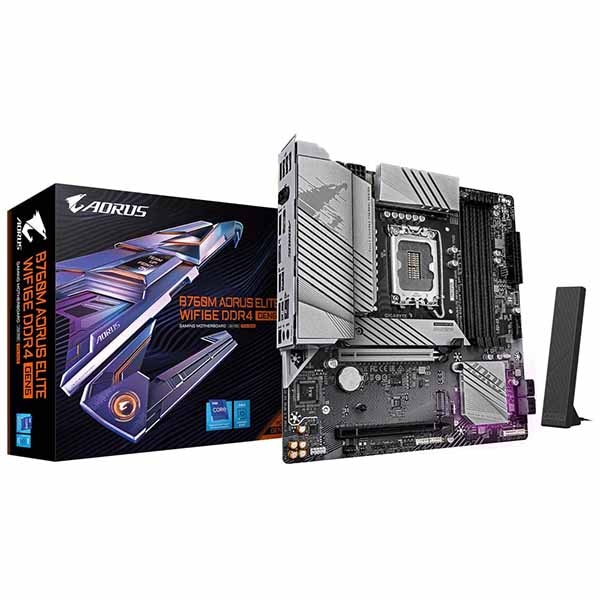

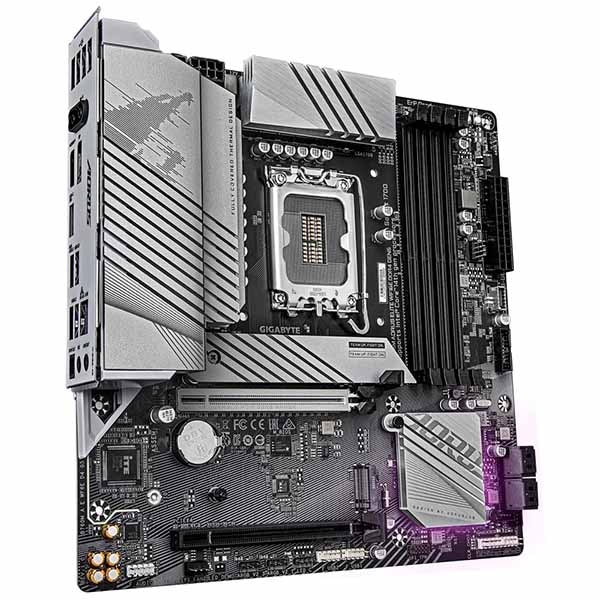

GIGABYTE B760M AORUS ELITE WIFI6E DDR4 GEN5 マザーボード｜B760M A E WF6E D4 G5
【安心の正規代理店品】
- メーカー名
- GIGABYTE
- 商品コード
- MB6762
16,980円(税込)
初期不良保証
※入荷次第発送
商品説明
Intel B760チップセット搭載GEN5対応マザーボード
[特徴]
・PCIe Gen5 対応：PCIe 5.0 x16 スロット搭載
・第 14 / 13 / 12 世代 Intel Core プロセッサー対応
・12+1+1 Twin Hybrid 電源フェーズ設計
・Dual Channel DDR4：4 スロット搭載 (XMP 対応)
・M.2 EZ-Latch Plus：M.2 SSD のネジ不要着脱可能
・高速ストレージ：2*PCIe 4.0 x4 M.2 コネクタ
・高速ネットワーク：2.5 GbE 有線 LAN & Wi-Fi 6E
・充実した接続性：リア USB-C 20Gb/s, フロント USB-C 10Gb/s, HDMI & DisplayPort 搭載
[仕様]
JAN：4719331872915
[特徴]
・PCIe Gen5 対応：PCIe 5.0 x16 スロット搭載
・第 14 / 13 / 12 世代 Intel Core プロセッサー対応
・12+1+1 Twin Hybrid 電源フェーズ設計
・Dual Channel DDR4：4 スロット搭載 (XMP 対応)
・M.2 EZ-Latch Plus：M.2 SSD のネジ不要着脱可能
・高速ストレージ：2*PCIe 4.0 x4 M.2 コネクタ
・高速ネットワーク：2.5 GbE 有線 LAN & Wi-Fi 6E
・充実した接続性：リア USB-C 20Gb/s, フロント USB-C 10Gb/s, HDMI & DisplayPort 搭載
[仕様]
| 対応 CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| チップセット | Intel B760 Express Chipset |
| メモリー | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory module 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| 映像出力端子 | Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| オーディオ | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| 有線 LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| 無線 LAN | Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| 拡張スロット | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| ストレージ端子 | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB 端子 | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel |
| 内部入出力端子 | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| バックパネル端子 | 2 x antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks (Note) Actual support may vary by CPU. |
| I/O コントローラー | iTE I/O Controller Chip |
| ハードウェア・モニター | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| 独自機能 | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| バンドル・ソフトウェア | Norton Internet Security (OEM version) LAN bandwidth management software |
| 対応 OS | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| フォームファクター | Micro ATX Form Factor; 24.4cm x 24.4cm |
JAN：4719331872915
