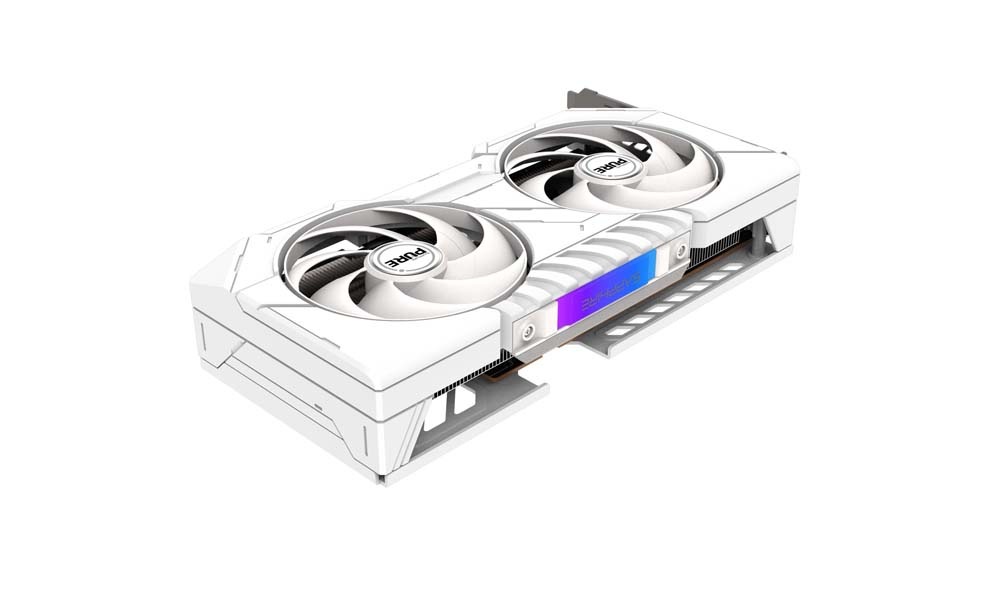

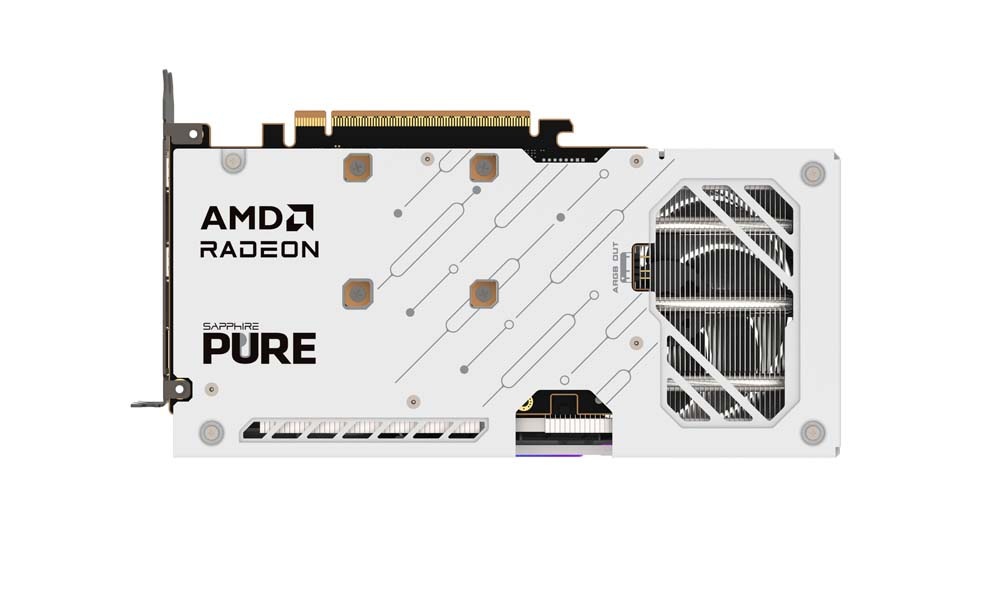

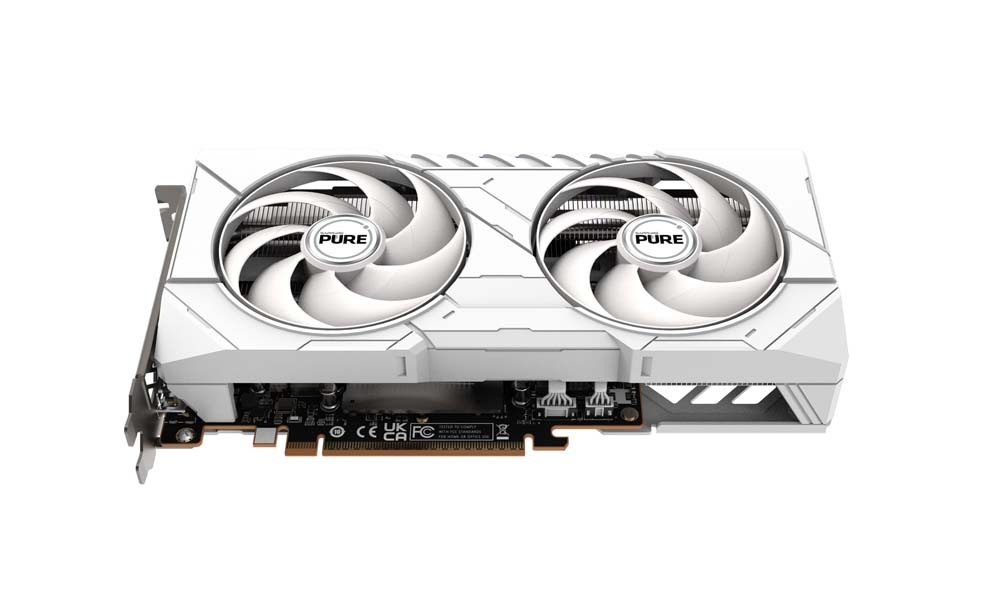

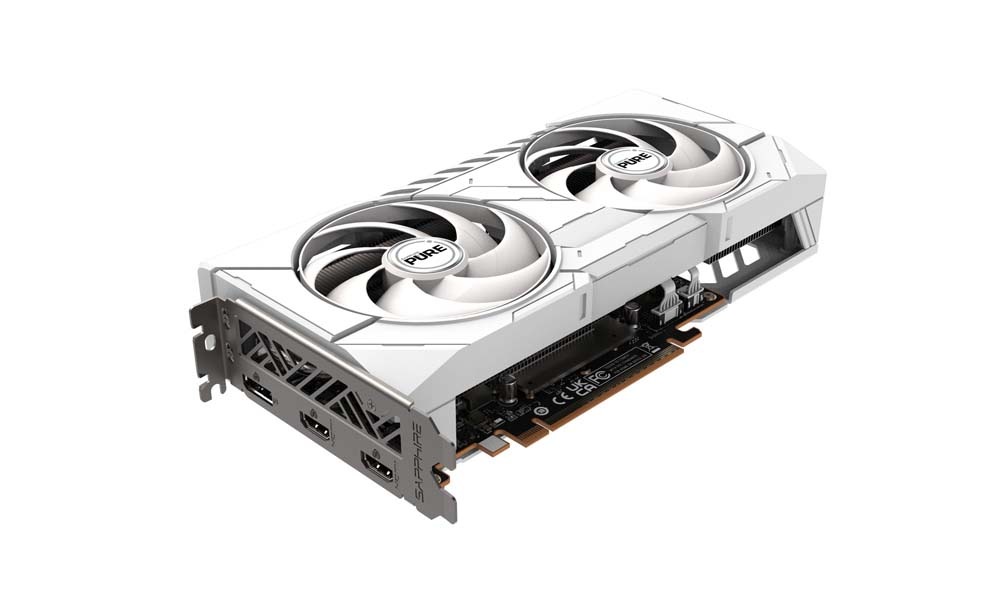

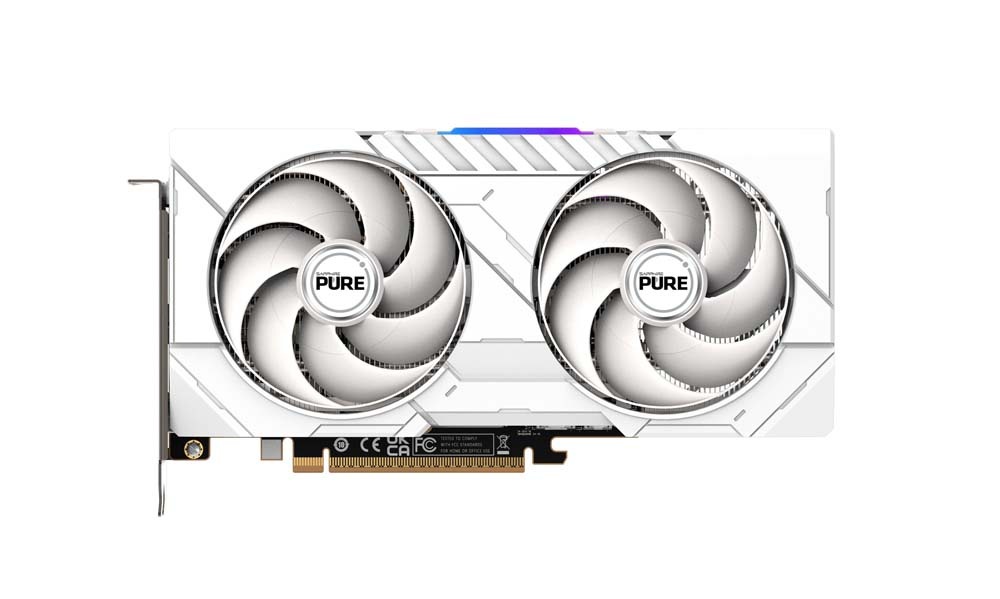

SAPPHIRE PURE Radeon RX 9060 XT GAMING OC 16GB グラフィックカード｜PURERX9060XT16GB/11350-02-20G

AMD Radeon RX 90シリーズは、AMD RDNA 4 アーキテクチャを基盤として、強力なレイトレーシングと AI アクセラレータ、ビデオ ストリーミングと録画のビジュアル品質向上を実現したグラフィックスカードです。 32基の演算ユニットと2048基のストリームプロセッサを搭載しており、高いパフォーマンスを発揮します。 またSapphire製品は2x HDMI2.1と1x DisplayPort 2.1aポートで構成されているため、幅広い市販のモニターに対応しユーザーのニーズに応えます。

[仕様]

GPU	AMD Radeon RX 9060 XT Graphics Card AMD RDNA 4 Architecture
Engine Clock	Boost Clock: Up to 3290 MHz Game Clock: Up to 2700 MHz Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors	2048
Compute Units	32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache	32MB
Ray Accelerators	32
AI Accelerator	64
Memory Size/Bus	16GB/128 bit GDDR6
Memory Clock	20 Gbps Effective
Displays	Maximum 3 Displays
Resolution	HDMI: 7680×4320 DisplayPort 2.1a: 7680×4320
Interface	PCI-Express 5.0 x16
Output	2x HDMI 1x DisplayPort 2.1a
BIOS Suppor	UEFI
Game Index	1440P
Sapphire Features	Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Dual-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB SAPPHIRE Logo Two-Ball Bearing Fans 9-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! TriXX Boost External RGB LED MB Synchronization
Accessories Bundled	3pin 5V ARGB Cable
AMD Features	AMD RDNA 4 Architecture 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX Super Resolution 4 with AI Upscaling DisplayPort 2.1a AMD Radiance Display Engine AMD Fluid Motion Frames 2 technology AMD Radeon Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX technologies Microsoft DirectX 12 Ultimate AMD Noise Suppression AMD Freesync technology AMD Infinity Cache 16 GB of GDDR6 on 128-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition application
Cooler Type	Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing
Form Factor	2.3 slot, ATX Dimension: 240(L)X 124(W)X 46.1 (H)mm
Power Consumption	170W Typical Board Power
OS	Linux, Windows 10, and Windows 11. 64-bit operating system required
System Requirement	Minimum 450 Watt Power Supply 1 x 8-pin Power Connector. PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended.

JAN：4537694369909
