ASK ドリームパック R7 9800X3D W/O Cooler (GIGABYTE)｜ASK-R79800X3D-GIGAB850SET

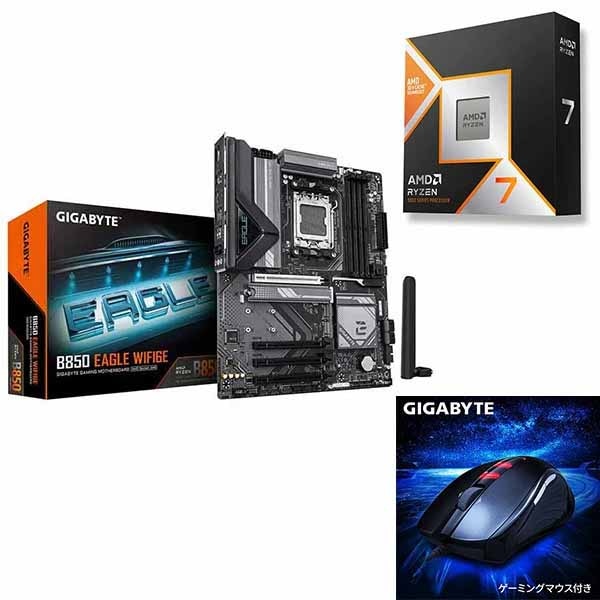

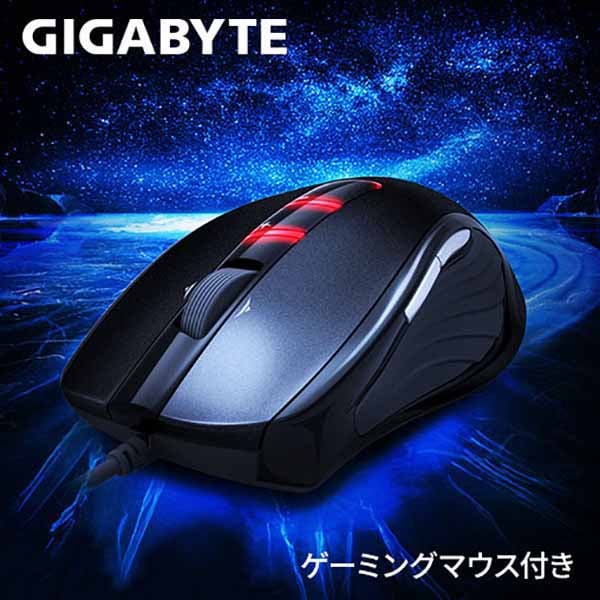

AMD Ryzen 7 9800X3D デスクトップ プロセッサ、GIGABYTE B850 EAGLE WIFI6E AMD B850チップセット搭載 ATXマザーボードのセットパック。Gigabyte M6900 Opticalゲーミングマウス付き

[AMD Ryzen 7 9800X3D デスクトップ プロセッサ 仕様]

一般的な仕様	タイトル:AMD Ryzen 7 9800X3D ファミリ:Ryzen シリーズ:Ryzen 9000 Series フォーム ファクター:デスクトップ, ボックス版プロセッサ Market Segment:Enthusiast Desktop AMD PRO Technologies:いいえ 地域別の提供状況:グローバル 以前のコードネーム:Granite Ridge AM5 プロセッサ アーキテクチャ:Zen 5 CPU コア数:8 マルチスレッディング(SMT):はい スレッド数:16 最大ブースト クロック:最大 5.2 GHz ベース クロック:4.7GHz L1 キャッシュ:640KB L2 キャッシュ:8MB L3 キャッシュ:96MB デフォルト TDP:120W CPU コアのプロセッサ テクノロジ:TSMC 4nm FinFET I/O ダイのプロセッサ テクノロジ:TSMC 6nm FinFET パッケージのダイ数:2 オーバー クロックのロック解除:はい AMD EXPO Memory Overclocking Technology:はい Precision Boost Overdrive:はい Curve Optimizer による電圧オフセット:はい AMD Ryzen Master Support:はい CPU ソケット:AM5 Supporting Chipsets:A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 CPU Boost Technology:Precision Boost 2 命令セット:x86-64 対応する拡張機能:AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 サーマル ソリューション(PIB):含まれていません Recommended Cooler:Liquid cooler recommended for optimal performance 最大動作温度(Tjmax):95°C *OS サポート:Windows 11 -64-Bit Edition, Windows 10 -64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
接続性	Native USB 3.2 Gen 2(10Gbps):4 Native USB 2.0(480Mbps):1 PCI Express Version:PCIe 5.0 Native PCIe Lanes(Total/Usable):28, 24 NVMe 対応:Boot, RAID0, RAID1, RAID5, RAID10 システム メモリ タイプ:DDR5 Memory Channels:2 最大メモリ:192 GB システム メモリのサブタイプ:UDIMM 最大メモリ速度: 　2x1R DDR5-5600 　2x2R DDR5-5600 　4x1R DDR5-3600 　4x2R DDR5-3600 ECC 対応:Yes(Requires mobo support)
グラフィックス機能	グラフィックス モデル:AMD Radeon Graphics グラフィックス コア数:2 グラフィックス周波数:2200 MHz USB Type-C DisplayPort Alternate Mode:はい

[GIGABYTE B850 EAGLE WIFI6E AMD B850チップセット搭載 ATXマザーボード 仕様]

対応 CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
チップセット	AMD B850
メモリー	Support for DDR5 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C)/ 6200(O.C)/ 6000(O.C)/ 5800(O.C)/ 5600(O.C)/ 5200/ 4800/ 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB(64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking(AMD EXPO) and Extreme Memory Profile(XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate(speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
映像出力端子	Integrated Graphics Processor with AMD Radeon Graphics support: -1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz *Support for DisplayPort 1.4 version and HDR. -1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Support for HDMI 2.1 version, HDCP 2.3, and HDR. **Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
オーディオ	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel *You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
有線 LAN	Realtek GbE LAN chip(1 Gbps/100 Mbps/10 Mbps)
無線 LAN	Intel Wi-Fi 6E AX210(PCB rev. 1.0) -WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands -BLUETOOTH 5.3 -Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE(PCB rev. 1.1) -WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands -BLUETOOTH 5.3 -Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
拡張スロット	1 x PCI Express x16 slot(PCIEX16), integrated in the CPU: ・AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode ・AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode ・AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: -3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3)
ストレージ端子	1 x M.2 connector(M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: ・AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs ・AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs ・AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector(M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: ・AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs ・AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs ・AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector(M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices *RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB 端子	CPU: -1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support -2 x USB 3.2 Gen 2 Type-A ports(red) on the back panel Chipset: -1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header -4 x USB 3.2 Gen 1 ports(2 ports on the back panel, 2 ports available through the internal USB header) -4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: -4 x USB 2.0/1.1 ports available through the internal USB headers
内部入出力端子	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
バックパネル端子	1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 2 Type-A ports(red) 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 2 x antenna connectors(2T2R) 3 x audio jacks *Actual support may vary by CPU.
I/O コントローラー	iTE I/O Controller Chip
ハードウェア・モニター	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control *Whether the fan(pump) speed control function is supported will depend on the fan(pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
独自機能	Support for GIGABYTE Control Center(GCC) *Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
バンドル・ソフトウェア	Norton Internet Security(OEM version) LAN bandwidth management software
対応 OS	Support for Windows 11 64-bit Support for Windows 10 64-bit
フォームファクター	ATX Form Factor:30.5cm x 24.4cm

JAN:4537694375467
