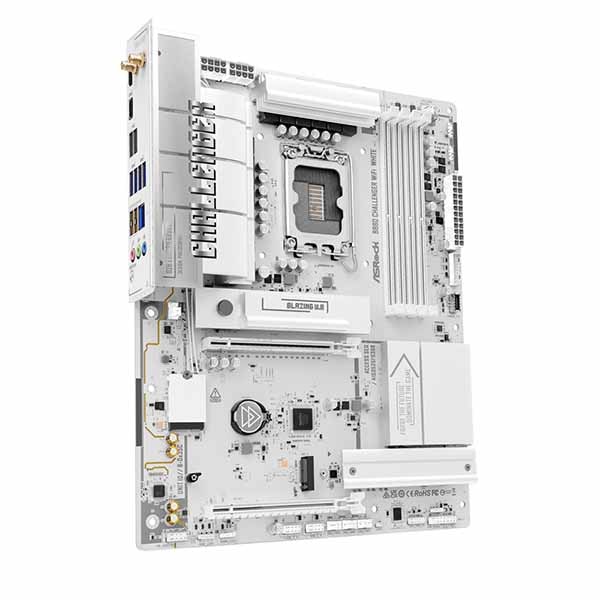

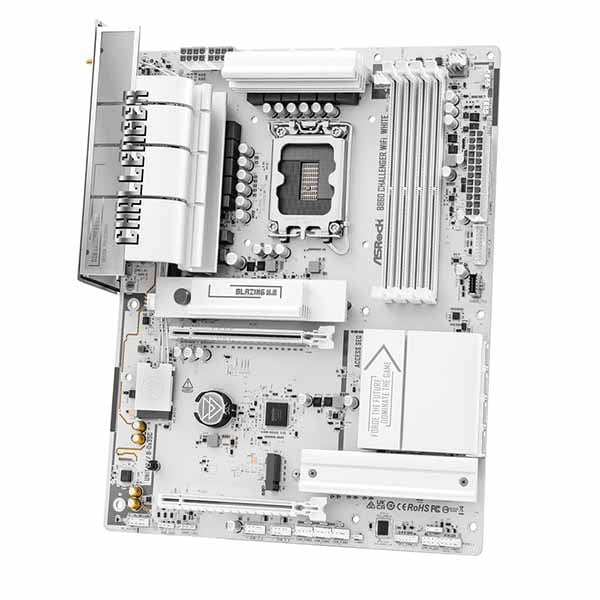

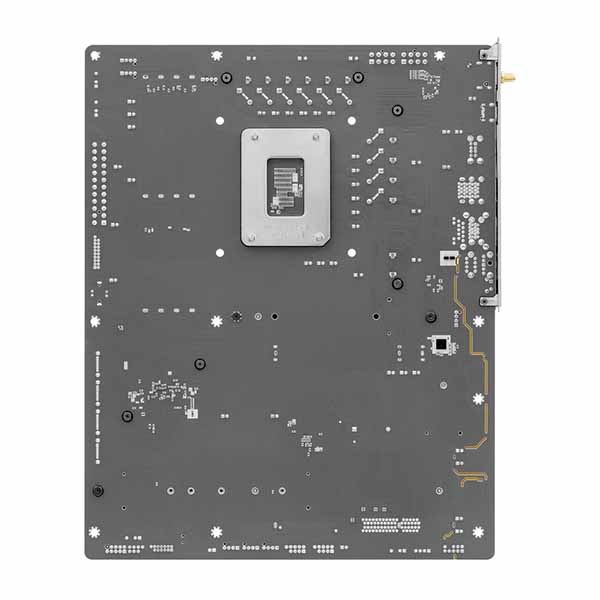

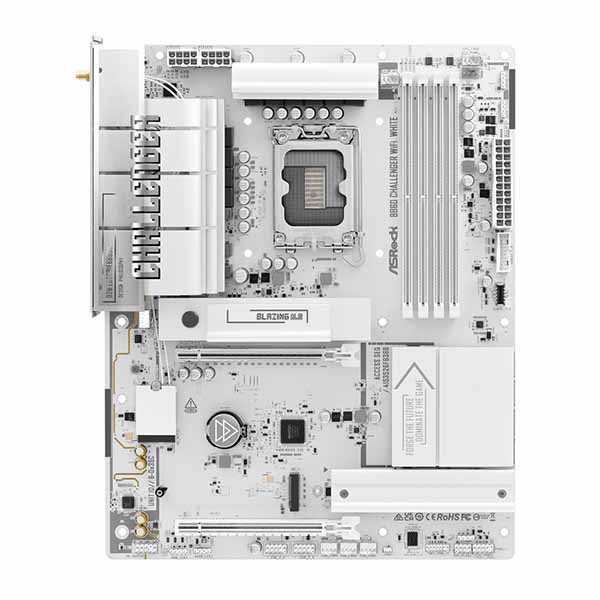

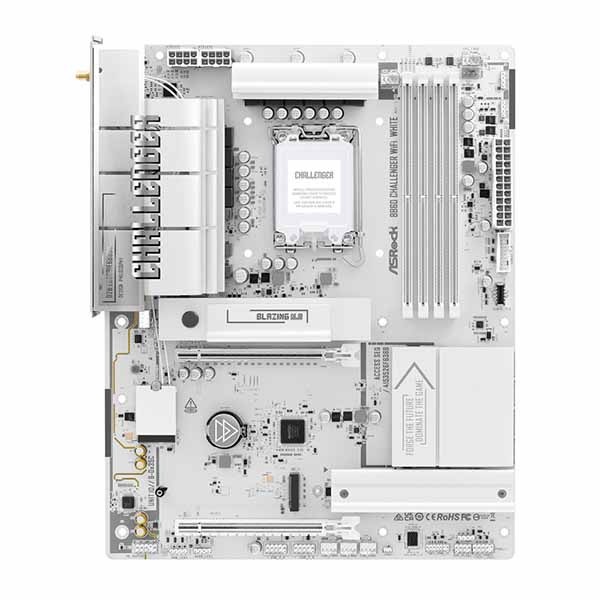

ASRock B860 Challenger WiFi White Series 2 / LGA1851対応 ATX マザーボード ホワイト｜B860 Challenger WiFi White

[特徴]
・Intel Core Ultraプロセッサー（Series 2 / LGA1851）対応、次世代プラットフォームに対応
・PCIe 5.0 x16スロットおよびGen5対応Blazing M.2を搭載し、最新GPU・高速SSDに対応
・DDR5メモリ最大8666+(OC)対応、最大256GBまでの大容量構成が可能
・Wi-Fi 7および2.5G LANを標準搭載し、高速かつ低遅延なネットワーク環境を実現
・10+1+1+1+1電源フェーズ設計（Dr.MOS）により、高い安定性と信頼性を提供
・Toolless M.2ヒートシンクおよびプリインストールI/Oシールドにより、優れた組み立てやすさを実現
・Nahimic AudioおよびLightning Gaming Portsにより、快適なゲーミング環境をサポート
・ホワイト基調の統一デザインにより、ホワイトPCビルドに最適

[仕様]

プラットフォーム	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
特徴	Superb Productivity -　PCIe Gen5 (Graphics, M.2) -　Dual Channel DDR5 Rock-Solid Durability -　10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA -　Pre-Installed I/O Shield Ultrafast Connectivity -　2.5G LAN, 802.11be Wi-Fi 7 Module -　ASRock Lightning Gaming Ports EZ Update -　BIOS Flashback Button -　ASRock Auto Driver Installer EZ Troubleshooter -　ASRock Post Status Checker
CPU	Supports Intel Core Ultra Processors (Series 2) (LGA1851) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration
チップセット	Intel B860
メモリ	-　Dual Channel DDR5 Memory Technology -　4 x DDR5 DIMM Slots -　Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)* 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively. -　Supports Clocked Unbuffered DIMM (CUDIMM) -　Max. capacity of system memory: 256GB -　Supports Intel Extreme Memory Profile (XMP) 3.0x * Please refer to Memory Support List on ASRock's website for more information.
拡張スロット	CPU: -　1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: -　1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* -　1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks
グラフィックス	* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. -　Intel Xe LPG Graphics Architecture -　1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
オーディオ	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
LAN	-　2.5 Gigabit LAN 10/100/1000/2500 Mb/s -　Dragon RTL8125BG -　Supports Dragon 2.5G LAN Software -　Smart Auto Adjust Bandwidth Control -　Visual User Friendly UI -　Visual Network Usage Statistics -　Optimized Default Setting for Game, Browser, and Streaming Modes -　User Customized Priority Control
Wireless LAN	-　802.11be 2x2 Wi-Fi 7 Module -　Supports IEEE 802.11a/b/g/n/ac/ax/be -　Supports 2.4GHz/5GHz/6GHz* frequency band -　Supports 160MHz channel bandwidth with 6GHz* frequency band * The Wi-Fi 7 module is supported by Microsoft Windows 11 only. 　The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available. -　2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology -　Supports Bluetooth 5.4 -　Supports MU-MIMO
USB	CPU: -　1 x USB 3.2 Gen1 (Rear (USB32_5)) Chipset: -　2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) -　7 x USB 3.2 Gen1 (5 Rear (USB32_1234 and USB32_6), 2 Front) -　6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection

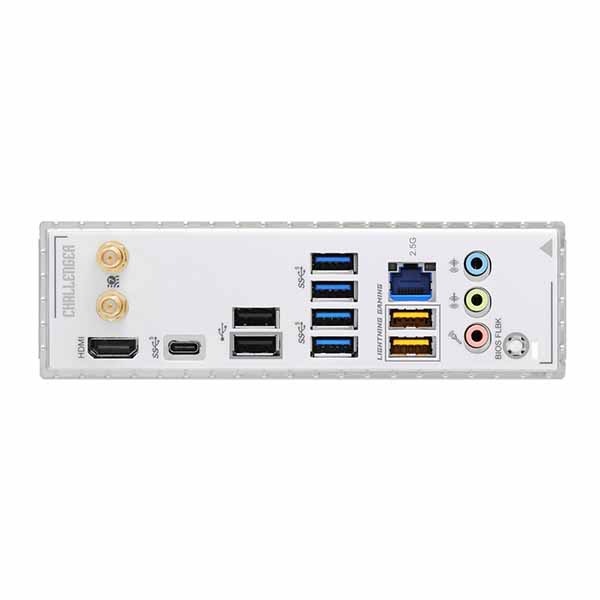

Rear Panel I/O	2 x Antenna Ports 1 x HDMI Port 1 x USB 3.2 Gen1 Type-C Port 6 x USB 3.2 Gen1 Ports (USB32_56 are Lightning Gaming Ports.) 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone
ストレージ	CPU: -　1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: -　1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* -　1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* -　4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) * Supports NVMe SSD as boot disks
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
コネクタ	1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). *** CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W). *** CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
BIOS Feature	- 256Mb AMI UEFI Legal BIOS with GUI support
Software and UEFI	Software -　ASRock Motherboard Utility (A-Tuning) -　ASRock Dragon 2.5G LAN Software -　ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI -　ASRock EZ Mode -　ASRock Full HD UEFI -　ASRock My Favorites in UEFI -　ASRock Auto Driver Installer -　ASRock Instant Flash
OS	- Microsoft Windows 11 64-bit
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)

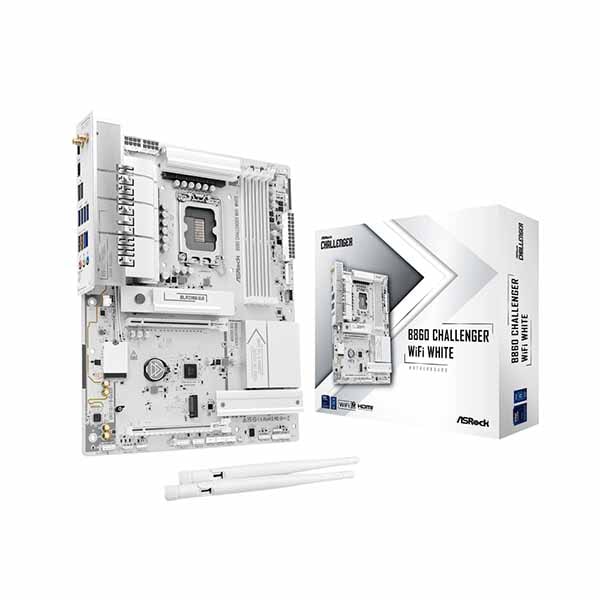

アクセサリー	2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x Screw for M.2 Socket 1 x Standoff for M.2 Socket

JAN：4711581494183
