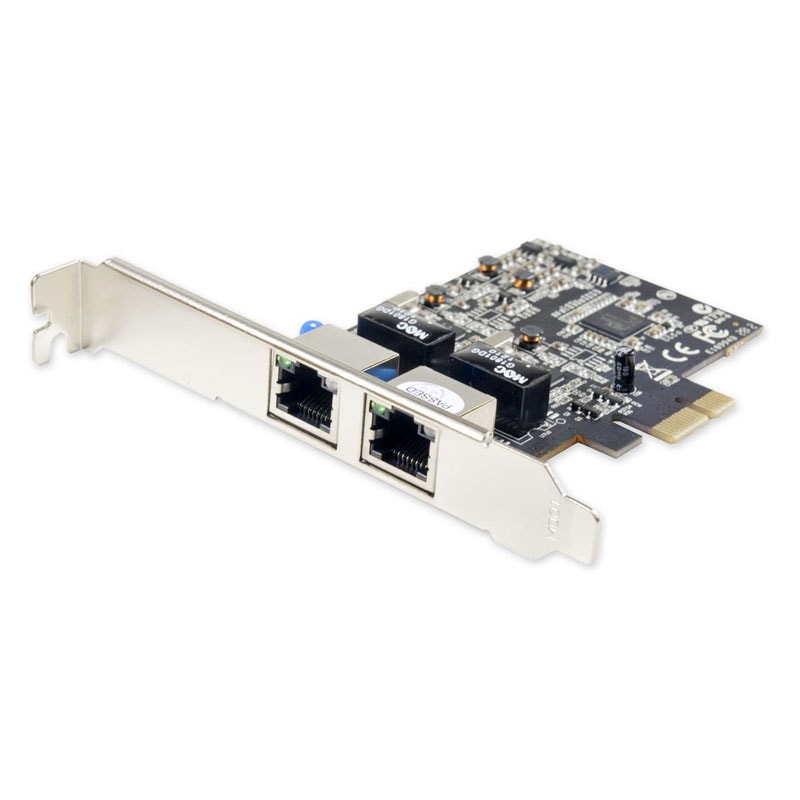

SYBA 2ポート Gigabit Ethernet PCI-e x1 ネットワークカード (SY-PEX24028)






The architecture is a cost-effective, low-pin count, and point-to-point technologies offering maximum bandwidth, reducing cost and design complexity and enabling smaller form factors. It provides throughput and connectivity at Gigabit speeds up to 1000 Mbps (1Gbps) raw bandwidth, this is 100 times faster than the original Ethernet, yet it is compatible with existing Ethernet.

Realtek Chipset 8111E
Designed to Meet PCI Express Specification Revision 1.0a
Single-lane (or x1) PCI Express Throughput Supports Rate of 2.5Gbps
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
10/100/1000M Data Auto-negotiation
LEDs Indicate the Status of Data Transmission
Support Wake On Lan (WOL) Power Management (Optional)
Full Duplex Mode Doubles the Network Connections Speed

Integrated 10/100/1000 transceiver
Auto-Negotiation with Next Page capability
Supports PCI Express 1.1
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Wake-on-LAN and remote wake-up support
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
Supports Full Duplex flow control (IEEE 802.3x)
Supports jumbo frame to 9K bytes
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports IEEE 802.3az Draft 3.0 (EEE)
Embedded OTP memory can replace the external EEPROM
Transmit/Receive on-chip buffer support
Supports power down/link down power saving
Built-in switching regulator
Supports PCI MSI (Message Signaled Interrupt) and MSI-X
Supports quad core Receive-Side Scaling (RSS)
Supports Alert Standard Format 2.0 (ASF2.0)
Supports Protocol Offload (ARP & NS)
Supports Customized LEDs
Supports 1-Lane 2.5Gbps PCI Express Bus
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function

対応OS:Windows 8、Windows 7、Vista、XP
