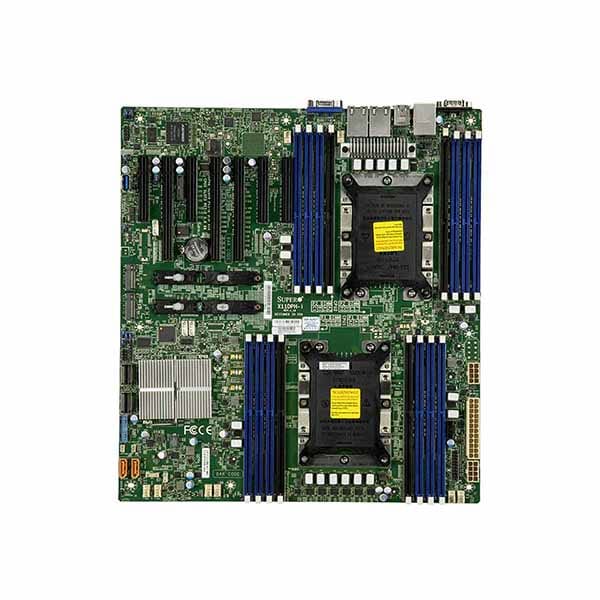

Super Micro MBD-X11DPH-I-O (intel C621チップセット/Dual Socket LGA-3647/E-ATX) マザーボード｜MBD-X11DPH-I-O
- メーカー名
- Super Micro
- 商品コード
- MB4028
70,400円(税込)
初期不良保証
△残りわずか
商品説明
メーカー保証：なし、店舗保証期間：商品到着後 7営業日
[仕様]
[仕様]
| Physical Stats | Form Factor： E-ATX Dimension： 12" x 13" (30.48cm x 33.02cm) |
| Processor | CPU： 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s |
| System Memory | Memory Capacity： 16 DIMM slots Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s Memory Type： 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS) DIMM Sizes ： LRDIMM: 64GB、RDIMM: 64GB Memory Voltage： 1.2V Error Detection ： Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices | Chipset： Intel C621 SATA： Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI： ASPEED AST2500 Network Controllers： Dual LAN with 1GbE with Intel X722 + Marvell 88E1512 |
| Input / Output | SATA： 10 SATA3 (6Gbps) port(s) LAN： 2 1GbE LAN ports USB： 4 USB 3.2 Gen1 port(s) (4 rear) Video Output： 1 VGA port(s) Serial Port： 1 COM DOM： 2 SATA ドム (Disk on Module) power connector support |
| Expansion Slots | PCIe： 3 PCIe 3.0 x16, 4 PCIe 3.0 x8 M.2： M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1 Form Factor: 2242/2260/2280/22110 Key: M-Key |
| System BIOS | BIOS Type： AMI UEFI |
| Management | Software： SuperDoctor 5、SUM、専用LAN付きKVM、SPM、Intelノードマネージャ、SSM、IPMI2.0、ウォッチドッグ |
| PC Health Monitoring | Voltage： Monitors CPU voltages, Chipset voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages LED ： UID/remote UID LED Power LED BMC/IPMI Heartbeat LED Temperature： Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8 Fan Connectors FAN： 8x 4-pin fan headers (up to 8 fans) PWM fan speed control Other Features ： WOL, UID, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, ATX power connector, ACPI power management, 8-pin 12v DC power connector, SDDC, NCSI header |
| Operating Environment | Operating Temperature Range： 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range： -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range ： 8% - 90% (non-condensing) Non Operating Relative Humidity Range： 5% - 95% (no |
| Publish Status | 0： Published |
JAN：0672042291687
