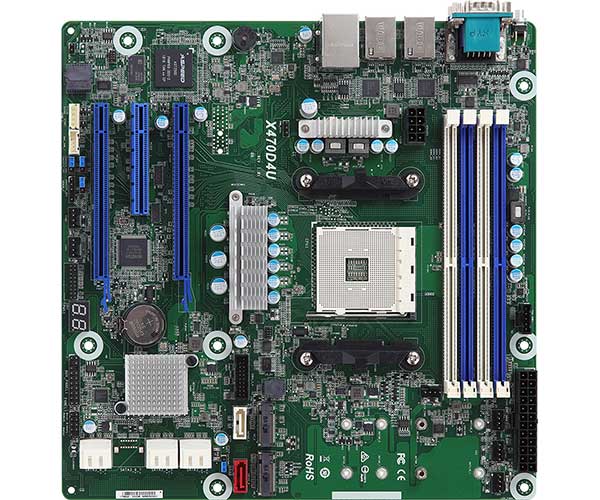

| MB Physical Status | |
| Form Factor | - mATX |
| Dimensions | - 9.6'' x 9.6'' (24.4 cm x 24.4 cm) |
| Processor System | |
| CPU | - AMD Ryzen™ (Pinnacle Ridge) 2nd Generation Series Processors |
| Socket | - AM4 PGA 1331 |
| Chipset | - AMD Promontory X470 |
| System Memory | |
| Capacity | - 4 x 288-pin DDR4 DIMM slots - Support up to 64GB DDR4 ECC/UDIMM - One DIMM: 1R DIMM @2667MT/s; 2R/2DR DIMM @2400MT/s - Two DIMMs: (1) 1R DIMM @2133 MT/s; (2) 2R/2DR DIMM @1866MT/s; 1R and 2R/2DR DIMM each @1866MT/s |
| Type | - Dual Channel DDR4 memory technology - Support DDR4 ECC/UDIMM |
| DIMM Size Per DIMM | - ECC/UDIMM: 64GB, 32GB, 16GB, 8GB |
| DIMM Frequency | - ECC/UDIMM: 2666/2400/2133 MHz |
| Voltage | - 1.2V |
| Expansion Slot | |
| PCIe 3.0 x 16 | - PCIE6: Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied. - SLOT4: Gen3 x8 link |
| PCIe 3.0 x 8 | - SLOT5: Gen3 x4 link |
| Storage | |
| SATA Controller | - 6 x SATA3 6.0 Gb/s (1x SATA DOM port) |
| Additional Storage Controller | - Asmedia 1061: 2x SATA3 6.0Gb/s |
| M.2 slot | - 2 (2242/2260/2280/22110, supports SATA3 6.0Gb/s or PCIe 3.0 x2(M.2_2) and supports PCIe 2.0 x4 only(M.2_1)) |
| Ethernet | |
| Interface | - 1000 /100 /10 Mbps by Intel® i210 |
| LAN Controller | - 2 x RJ45 GLAN by Intel® i210 - 1 x RJ45 Dedicated IPMI LAN port - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE - LAN1 supports NCSI |
| Management | |
| BMC Controller | - ASPEED AST2500 |
| IPMI Dedicated GLAN | - 1 x Realtek RTL8211E for dedicated management GLAN |
| Features | - Watch Dog |
| Graphics | |
| Controller | - ASPEED AST2500 |
| VRAM | - DDR4 256MB |
| Rear Panel I/O | |
| VGA Port | - 1 x D-Sub |
| USB 3.1 Gen1 Port | - 2 |
| Lan Port | - 2 x RJ45 Gigabit Ethernet LAN ports - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Serial Port | - 1 |
| UID Button/UID LED | - 1 |
| Internal Connector | |
| COM Header | - N/A |
| SATA DOM | - 1 |
| M.2 | - 2(M2_1: 2242/2260/2280/22110, PCIE(X4); M2_2:2242/2260/2280/22110, SATA/PCIE(X2)) |
| Auxiliary Panel Header | - 1 (include C_CASEOPEN#、SYSTEM_FAULT_LED、LAN1 & LAN2 LED, location button & LED,BMC alert ) |
| TPM Header | - 1 |
| IPMB Header | - 1 |
| Buzzer | - 1 |
| Fan Header | - 6 Fans x 4-pin (FAN1(CPU)/FAN2~FAN6(5Front)) |
| ATX Power | - 1x (24-pin) + 1x (8-pin) |
| USB 3.1 (Gen1) Header | - 1 (supports 2 USB 3.1 Gen1 ports) |
| USB 2.0 Header | - N/A |
| Speaker Header | - N/A |
| BMC_SMB Header | - 1 |
| ME/SPS Recovery | - N/A |
| Clear CMOS | - 1 (short pad) |
| PSU SMB Header | - 1 |
| Onboard LED | |
| Port 80 LED | - 1 |
| Fan Fail LED | - 6 (only Fan Fail LED) |
| System BIOS | |
| BIOS Type | - 16MB AMI UEFI Legal BIOS |
| BIOS Features | - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8.0 Support - ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | - CPU/DDR temperature sensing - MB/Card side temperature sensing |
| Fan | - Fan Tachometer - Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - Fan Multi-Speed Control |
| Voltage | - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB |
| Support OS | |
| OS | Microsoft® Windows: -Windows® 10 (64 bit) Linux: - UBuntu 16.04.4 (64 bit) - RedHat Enterprise Linux Server 7.3 (64bit) / 7.4 (64bit) * Please refer to our website for the latest OS support list. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
JAN：4717677337679
