QNAP Wi-Fi 6デュアルポート10GbE SD-WANルーター｜QHORA-301W

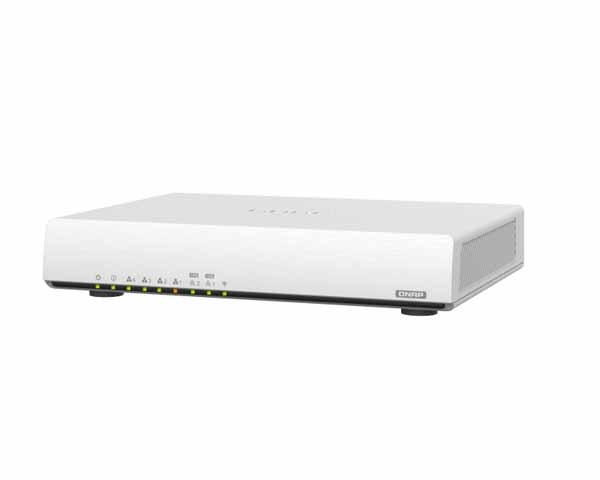

QHora-301W
次世代のWi-Fi 6デュアルポート10GbE SD-WANルーター

[特徴]
リモートワークの新しい標準を受け入れるために、企業は複数の場所のユーザーによって素早くアクセスできるリモートVPNと、有線およびワイヤレス接続をカバーする高速構内ソリューションの両方を展開する必要があります。
QHora-301Wは、高速Wi-Fi 6と10GbE接続をサポートしています。
また、エンタープライズグレードのSD-WAN VPNを提供し、クラウドを介したマルチサイトVPN展開を可能にしています。
お手頃価格のQHora-301Wは、次世代のネットワークを構築するための強固な基盤となっています。

[ハードウェア仕様]

Number of Ethernet Ports	6
CPU	Qualcomm IPQ8072A Hawkeye 2 Quad-core 2.2 GHz 64-bit CPU
10GbE BASE-T (RJ45)	2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
1GbE (RJ45)	4
Memory	1GB
Flash	4GB eMMC
Antenna	8 Internal Antennas
USB 3.2 Gen 1 port	2
Button	Power, WPS, Reset
Power	12V DC
Power consumption	24W
Dimensions	250×180×48 mm
Weight	1.9kg
Packing weight	2.2kg
Operating Temperature	0°C ~ +40°C
Operating Humidity	5% to 95% non-condensing
Certifications	JATE / CE / FCC / BSMI / NCC / IC / SRRC / CCC / VCCI / RCM
Wireless Standard	802.11a/b/g/n/ac/ax
Wireless Speed Rating	AX3600
Wireless Speed 2.4 GHz	2.4G (1182Mbps): 4x4 (40MHz)
Wireless Speed 5 GHz	5G (2475Mbps): 4x4 (80MHz), 2x2 (160MHz)
Frequency Band 2.4 GHz	✔, dual band
Frequency Band 5 GHZ	✔, dual band
Wireless Bandwidth	20/40/80/160 MHz wireless_specifications
Transmit Output Power	Depends on country code
Antenna Type	8 Internal 5dBi Antennas
Antenna Gain 2.4 GHz	4.5dBi
Antenna Gain 5 GHz	5.2dBi
Wi-Fi 6 (802.11ax)	✔
Wi-Fi 5 (802.11ac)	✔
SD-WAN	✔

[ソフトウェア仕様]

System Status and Management	Device connection status Device health status WAN status Wireless status Firmware schedule management
Operation Modes	Wireless router mode Access point (AP) mode
Wired Network Management	Recommended WAN port configurations and usage scenarios: 1GbE-1 port 10GbE-1 port 1GbE-1 and 1GbE-2 ports WAN/LAN port configuration Network port connection status IEEE 802.3Q virtual LAN (VLAN) (Support for wired and wireless interface) IPv4 routing management
Wireless Network Management	Supports IEEE 802.11ax (Wi-Fi 6) Supports MU-MIMO Supports band steering for dual-band (2.4GHz and 5GHzbandwidth) access points Transmission power (high, middle, and low) 20/40/80/160 MHz bandwidth Dynamic Frequency Selection (DFS) channels (Auto, custom) RTS/CTS (Request to Send/Clear to Send) function Dual-band 2.4G and 5G band settings Guest wireless IEEE 802.3Q virtual LAN (VLAN) (Support for wired and wireless interface) Smart connect SSID and password configuration Wireless Protected Access (WPA2-PSK, WPA-PSK + WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3, OWE) Supports IEEE 802.11r fast roaming Wireless scheduler Wireless (Protected Setup (WPS)
Security	Protocol-based firewall (TCP, UDP, ICMP, TCP+UDP) Firewall rules based on domain names and IP addresses Port forwarding and Network Address Translation (NAT) Support FTP ALG, PPTP ALG and SIP ALG UPnP
VPN	Secure remote access with L2TP, OpenVPN and QBelt (QNAP proprietary) protocol Client IP pool configuration VPN client management Connection logs
Access Control	Parental control Domain Name System (DNS) filtering and content filtering
System Setting	Restart, Reset, Backup, Audio Alert Local account, QNAP ID, Remote management USB Settings: FTP Server, Device User, USB usage condition Even Logs
QuWAN SD-WAN Service	Auto multi-site VPN WAN optimization WAN aggregation Failover Load Balance Traffic monitoring using QuWAN Orchestrator Maximum tunnel scale: 30

JAN：885022019861
