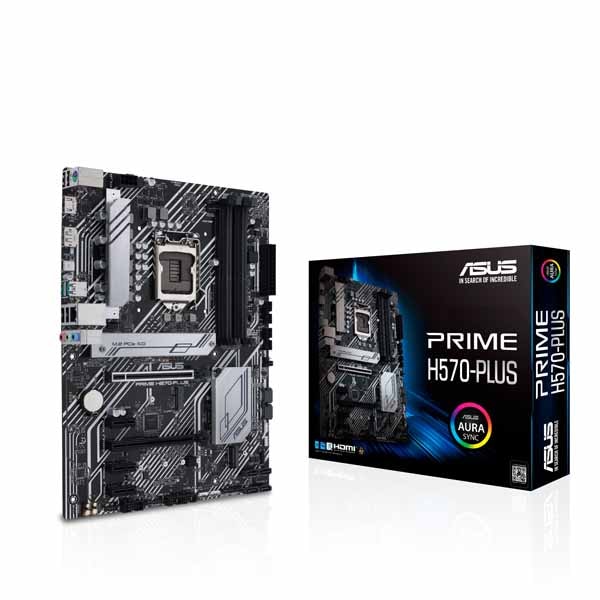

ASUS PRIME H570-PLUS ATXマザーボード｜PRIME/H570-PLUS

Supports Intel® 14nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*

* Refer to www.asus.com for CPU support list.

4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

ASUS OptiMem

* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.

Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

*Graphics specifications may vary between CPU types.

** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

***Only Intel® 11thprocessors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot*

- Intel® 11th processors support PCIe 4.0 x16

- Intel®10th processors support PCIe 3.0 x16

Intel® H570 Chipset

1 x PCIe 3.0 x16 slot (max. at x4 mode)*

3 x PCIe 3.0 x1 slots

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel® 11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

-Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® H570 Chipset

- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)*

- 6 x SATA 6Gb/s ports

Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

*When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1x USB 3.2 Gen 2 port (1 x USB Type-C®)

4 x USB 2.0 ports (4 x Type-A)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

**A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

1 x DP port

1 x HDMI port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

1 x Intel® I219-V port

4 x USB 2.0 ports (4 x Type-A)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

1x USB 3.2 Gen 2 port (1 x USB Type-C®)

Fan and cooling-related

1 x 4-pin CPU Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF out header

1 x 20-3pin System Panel header with Chassis intrude function

1 x 14-1 pin SPI TPM header

1X M.2 slot (Key E)

1 x Thunderbolt 4 header

ASUS 5X PROTECTION III

- ASUS DIGI+VRM

- ASUS LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design:

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- Box Headers

AURA SYNC

- AURA RGB headers

- Addressable Gen 2 RGB headers

ASUS Exclusive Software:

Armoury Crate

AI Suite 3

-Performance And Power Saving Utility

TurboV EVO

Digi+ VRM

EPU

Fan Xpert 2+

- EZ update

AI Charger

ASUS CPU-Z

DAEMON Tools

Norton Anti-virus software(Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x M.2 Rubber Package

1 x IO Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Supporting DVD

Documentation

1 x User's manual
