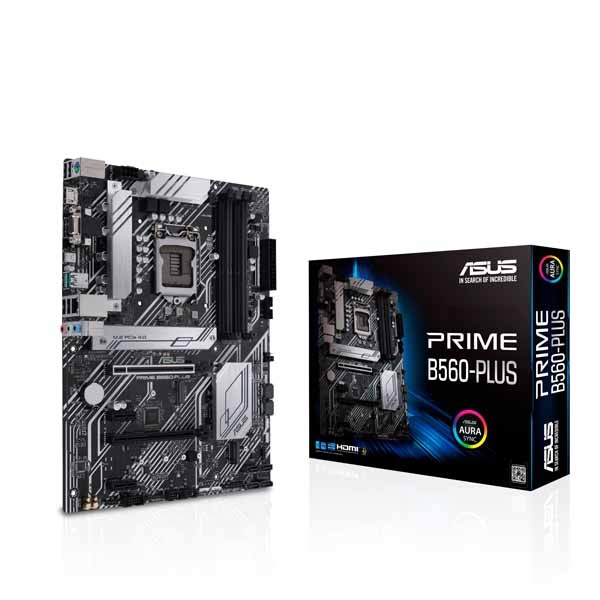

ASUS PRIME B560-PLUS ATXマザーボード｜PRIME/B560-PLUS
- メーカー名
- ASUS
- 商品コード
- PCU78436
商品説明
[特徴]
・Intel® LGA 1200ソケット：第11世代Intel® Core™ プロセッサーに対応
・包括的な冷却：VRM用ヒートシンク、フレキシブルM.2用ヒートシンク、PCH用ヒートシンク、ハイブリッドファンヘッダー、Fan Xpert 2+搭載
・ASUS OptiMem: 信号の整合性を向上するトレースとビアの慎重なルーティングによりメモリの安定性を強化
・超高速な接続性：PCIe 4.0、Intel® 1 Gb Ethernet、背面USB 3.2 Gen 1 Type-C®およびThunderbolt™ 4ヘッダー対応
・5X Protection III: 複数のハードウェアプロテクションの組合せによる絶対的な保護
[仕様]
| 対応CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0* * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| 搭載チップセット | B560 |
| メインメモリ | 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) ASUS OptiMem * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| グラフィックス | 1 x DP1.4** 1 x D-Sub 1 x HDMITM1.4 / 2.0*** *Graphics specifications may vary between CPU types. ** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. ***Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
| 拡張スロット | 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory. |
| ストレージ | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 11th Gen Processors - M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ) - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset - M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes) - 6 x SATA 6Gb/s ports When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used. |
| イーサネット | ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe) |
| USB機能 | Rear USB:Total 7 ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x USB Type-C®) 4 x USB 2.0 ports Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| オーディオ機能 | ALC887/897
Realtek ALC897 7.1-Channel High Definition Audio CODEC* Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. |
| Back Panel I/O Ports | 1 x DP port 1 x HDMI port 1 x D-Sub port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port 1 x Intel® I219-V 1Gb Ethernet port 4 x USB 2.0 ports (4 x Type-A) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1x USB 3.2 Gen 1 port (1 x USB Type-C®) |
| Intrernal I/O Connectors | TB Header (アドオンTBカード用)×1 Fan and cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS jumper 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF out header 1 x 20-3pin System Panel header with Chassis intrude function 1 x SPI TPM header (14-1 pin) 1 x M.2 slot (key E)
1 x Thunderbolt 4 header |
| 独自機能 | ASUS 5X PROTECTION III - ASUS DIGI+VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design: - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - Box Headers AURA SYNC - AURA RGB headers - Addressable Gen 2 RGB headers |
| ソフトウェア | ASUS Exclusive Software: Armoury Crate - AURA Creator -AURA Sync AI Suite 3 -Performance And Power Saving Utility Turbo EVO Digi+ VRM EPU Fan Xpert 2+ - EZ update ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIO |
| 管理機能 | WOL by PME, PXE |
| 付属品 | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 Rubber Package 1 x IO Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Supporting DVD Documentation 1 x User's manual |
| 対応OS | Windows 10 64ビット |
| フォームファクター | ATX 30.5cm×23.4cm |
JAN：195553122689
