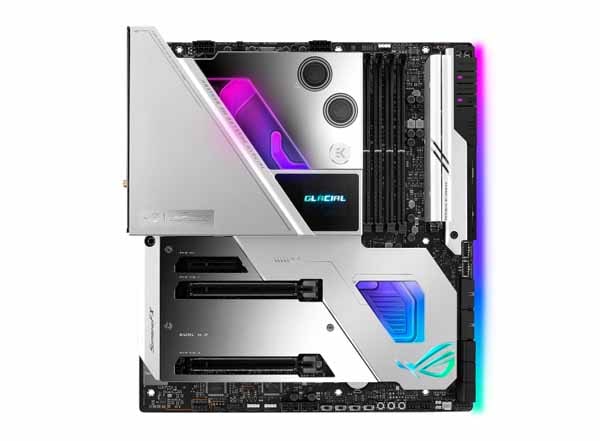

ROG Maximus XIII Extreme Glacial

[特徴]
・第11世代Intel® Core™ プロセッサーおよび第 10 世代インテル® Core、Pentium® Gold、Celeron® プロセッサー用インテル® ソケット LGA 1200
・最適化された熱設計:VRM、CPU、PCHを冷却する統合EKウォーターブロック、高導電性サーマルパッド、バックプレートを内蔵した5つのM.2ヒートシンク、ROGウォータークーリングゾーン
・インテリジェントコントロール:セットアップを簡単にし、パフォーマンスを向上させるASUS独自のソフトウェアとファームウェアユーティリティ。AIオーバークロック、AI冷却、AIネットワーキング、双方向AIノイズキャンセリング機能を搭載
・堅牢なパワーソリューション:18+2チームパワーステージ - 各定格100アンペア、ProCool IIパワーコネクタ、MicroFine合金チョーク、10K日本製ブラックメタリックコンデンサ
・高性能ネットワーキング:オンボードWiFi 6E(802.11ax)、Marvell® AQtion 10Gbイーサネット、インテル® 2.5Gbイーサネット、ASUS LANGuard
・最速のゲーム接続性:PCIe® 4.0、M.2スロット5基、USB 3.2 Gen 2x2フロントパネルコネクター、デュアルThunderbolt™ 4 USB-C®搭載
・業界をリードするゲーミング・オーディオ:ROG SupremeFX ALC4082にESS® ES9018Q2C DACを搭載し、ハイファイなサウンドを実現
・比類なきパーソナライゼーション: 2" LiveDashカラー有機EL、ASUS独自のAura Sync RGBライティング(RGBヘッダー1個とアドレッサブルGen 2 RGBヘッダー3個を含む)
・DIYフレンドリーな設計:プリマウントI/Oシールド、V_Latchスイッチ、BIOS FlashBack™、Qコード、FlexKey、Qコネクタ、SafeSlot、およびグラフィックスカードホルダーを搭載
・有名なソフトウェア:1年間のAIDA64 ExtremeサブスクリプションとMemTest86を統合した直感的なUEFI BIOSダッシュボードがバンドルされています。


[仕様]
対応CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
搭載チップセット Z590
メインメモリ
4 x DIMM, Max. 128GB, DDR4
5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
グラフィックス機能
1 x HDMI 2.0***
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs *
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
拡張スロット
2 x PCIe 4.0/3.0 x16 (x16, x8/x8)
Intel® 11th & 10th Gen Processors
2 x PCIe 4.0/3.0 x16 slot(s)
- Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s)
- Intel® 10th Core™ processors support PCIe 3.0 x16 or x8/x8 mode(s)
Intel® Z590 Chipset
1 x PCIe 3.0 x4 slot*
* PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode.
マルチGPU対応

NVIDIA 2-Way SLI® Technology*

*Support varies with different graphics cards

ストレージ
Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th & 10th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 11th Core™ processors support PCIe 4.0 x4 mode
- Intel® 10th Core™ processors support PCIe 3.0 x4 mode
M.2_2 slot (Key M), type 2242/2260/2280
- Intel® 11th Core™ processors support PCIe 4.0 x4 mode
- Intel® 10th Core™ processors support PCIe 3.0 x4 mode
M.2_3 slot (Key M), type 2242/2260/2280
- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*
6 x SATA 6Gb/s ports
Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
* DIMM.2_2 shares bandwidth with SATA6G_34 and DIMM.2_2 is default set at x2 mode.
無線機能 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2
USB機能
Rear USB:Total 10 ports
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
Front USB:Total 10 ports
1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C®
1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C®
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
オーディオ機能
ALC4082
Audio Features
- SupremeFX Shielding Technology
- ESS® SABRE9018Q2C DAC/AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Audio cover
Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® port(s)
8 x USB 3.2 Gen 2 port(s) (8 x Type-A)
1 x HDMI™ port
1 x ASUS Wi-Fi Module
1 x Marvell® AQtion AQC113CS 10Gb Ethernet
1 x Intel® I225-V 2.5Gb Ethernet
5 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Intrernal I/O Connectors
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

Fan and Cooling related

2 x 4-pin Chassis Fan header(s)

2 x 4-pin Radiator Fan header(s)

2 x W_PUMP+ header(s)

1 x WB_SENSOR header(s)

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector

Storage related

3 x M.2 slots (Key M)

1 x DIMM.2 slot supports 2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C®)

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x WB_ADD header(s)

1 x BIOS Switch button

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

8 x ProbeIt Measurement Points

1 x ReTry button

2 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Speaker header

1 x Start button

1 x V_LATCH switch

1 x 10-1 pin System Panel header

1 x Thermal Sensor header
独自機能
Y

Extreme OC Kit

- FlexKey button

- LN2 Mode

- Probelt

- ReTry button

- Safe boot button

- Start button

- Slow Mode

Extreme Engine Digi+

- 10K Black Metallic Capacitors

- MicroFine Alloy Choke

ASUS Q-Design

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- ROG AURA sync backplate

- AURA RGB header(s)

- Addressable Gen 2 RGB header(s)

Dual BIOS

OLED 2"

ASUS HYDRANODE

- 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P)

- 2 x USB2.0 port support* (USB_EP1,USB_EP3)

* Visit ASUS Website for the latest compatibility list.
ソフトウェア機能

ROG Exclusive Software

- Mem Tweakit

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- BullGuard Internet Security (1-year full version)

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (1 year full version)

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

- OLED Display

AI Suite 3

- 5-Way Optimization with AI Overclocking

TPU

EPU

Digi+ Power Control

Fan Xpert 4

Turbo app

- EZ update

AI Charger

DAEMON Tools

MyAsus

WinRAR

UEFI BIOS

MemTest86

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
管理機能 WOL by PME, PXE
付属品

Cables

1 x 1-to-3 ARGB splitter cable

2 x 1-to-4 fan splitter cable

1 x RGB extension cable

3 x ROG weave SATA 6G cables

1 x 3-in-1 Thermistor cables pack

ROG Fan Controller

1 x ROG Fan Controller

1 x Fan EXT PWR cable

1 x ARGB input cable

1 x USB input cable

1 x ROG Fan Controller 3M Mounting tape

1 x Fan Controller manual

ROG DIMM.2 with Heatsink

1 x ROG DIMM.2 with heatsink

1 x M.2 pad for ROG DIMM.2

2 x M.2 screw package for ROG DIMM.2

Additional Cooling Kit

1 x Monoblock

3 x Screw package for monoblock

1 x Thermal pad for monoblock

1 x Fittings for monoblock

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x M.2 Rubber Package(s)

1 x M.2 SSD screw package(s)

1 x Q-connector

1 x ROG CLAVIS DAC

1 x ROG key chain

1 x ROG logo plate stickers

1 x ROG screwdriver

1 x ROG stickers

1 x ROG thank you card

1 x ROG Graphics card holder

Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x User manual
対応OS Windows 10 64bit

JAN:195553093903
