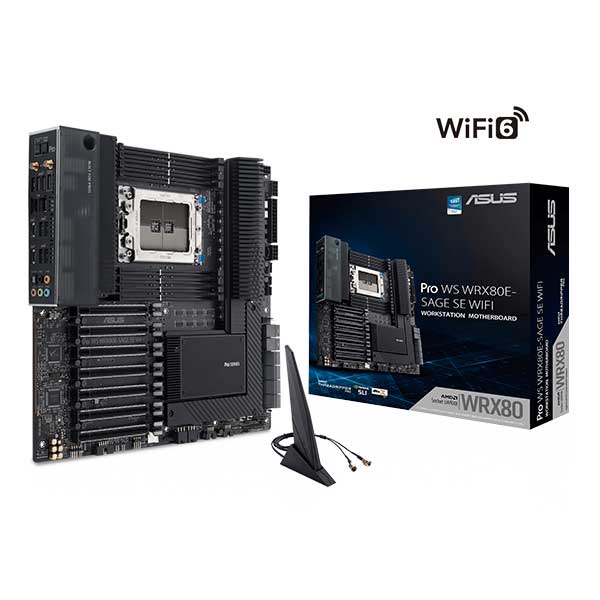

ASUS PRO WS WRX80E-SAGE SE WIFI AMD WRX80チップセット搭載E-ATXマザーボード|90MB1590-M0UAY0

メーカー名
ASUS
商品コード
MB5326
202,532(税込)

初期不良保証

※入荷次第発送

商品説明

※画像・商品情報について

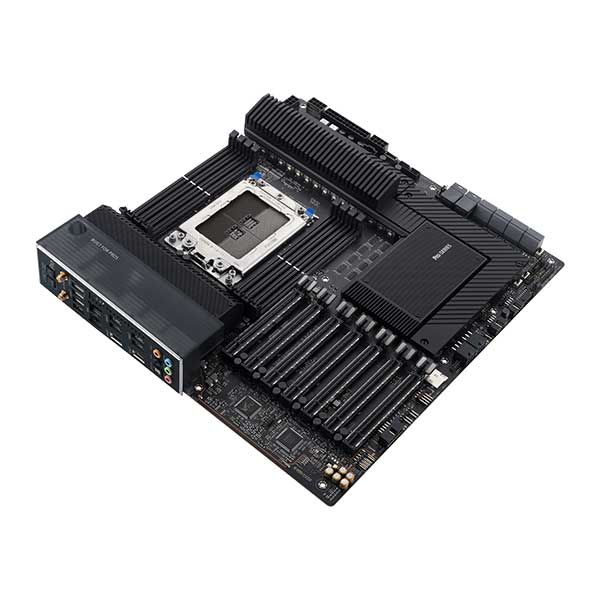

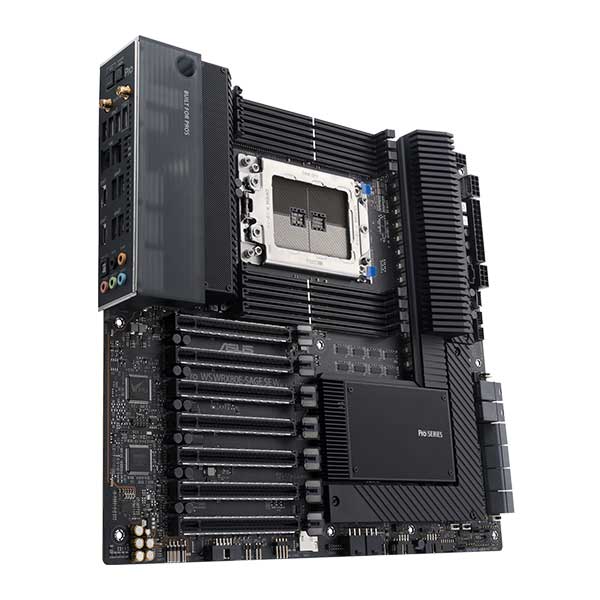

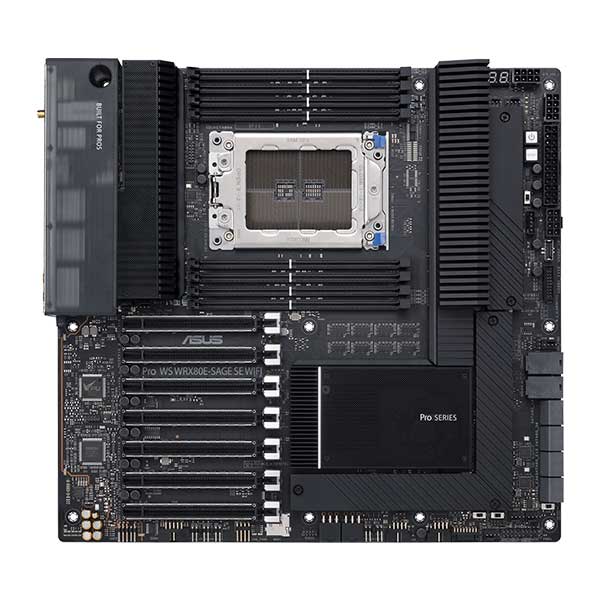

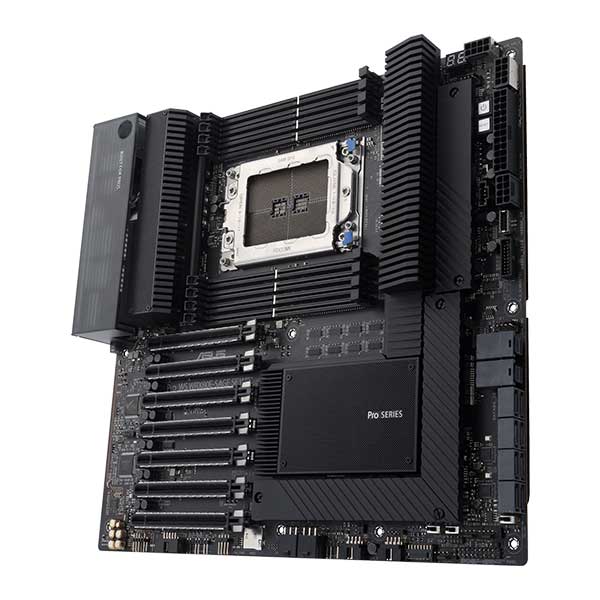

AMD Ryzen Threadripper Pro プロセッサに対応するASUS製マザーボード

[特徴]
・AMD WRX80チップセット搭載E-ATXマザーボード
・DIMM x8スロット nonECC or ECC UDIMM、RDIMM、3DS RDIMMに対応し、8ch動作  ##適合メモリについてはASUS WebのAVLリストをご確認ください。
・PCIe4.0/3.0 x 16 x7スロット搭載 4way GPU対応
・PCIe Gen4対応 M.2スロット x3 + 6Gb/s SATAコネクター x12 U.2 SSDもサポート
・Intel X550-AT2 10GBASE-T イーサネット x2ポート + Intel Wifi 6搭載
・ASMB9-iKVM リモートマネジメント搭載 ※Intel X550-AT2 の1ポートを兼用
・USB3.2 Gen2 Type-C コネクター x2基搭載
・Realtek オーディオ CODEC搭載

[仕様]
CPU AMD Ryzen Threadripper Pro Processors*
* Refer to www.asus.com for CPU support list.
Chipset AMD WRX80 Chipset
Memory Memory Channels:8DDR4 (Eight Channel)
Max Memory Size:2048GB
8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory*
8 Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Expansion Slots AMD Ryzen Threadripper PRO Series Processors
7 x PCIe 4.0/3.0 x16 slot(s)*
* Support PCIe bandwidth bifurcation for RAID on CPU function.
Multi-GPU Support Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology
Storage Supports 3 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen Threadripper PRO Series Processors
 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
 M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
 U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices*
AMD WRX80 Chipset
 M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
 U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices*
 4 x SATA 6Gb/s ports
ASMedia ASM1061 Controller
 4 x SATA 6Gb/s ports
 Supports NVMe RAID configurations via M.2 storages

*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately.
Ethernet 1 x Intel X550-AT2 dual 10Gb Ethernet
Wireless & Bluetooth Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports 2.4/5GHz Dual-Band
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
Bluetooth v5.1*
* Bluetooth v5.1 function will be ready in Windows® 10 build 19041 or later.
USB 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C)

Front USB:Total 7 ports
 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C)
 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
 - Impedance sense for front and rear headphone outputs
 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
 - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
 - Supports up to 32-Bit/384 kHz playback"
Audio Features
 - Audio Shielding
 - Power pre-regulator reduces power input noise to ensure consistent performance
 - Rear optical S/PDIF out port
 - Premium Japanese audio capacitors
 - Dedicated audio PCB layers
 - Unique de-pop circuit

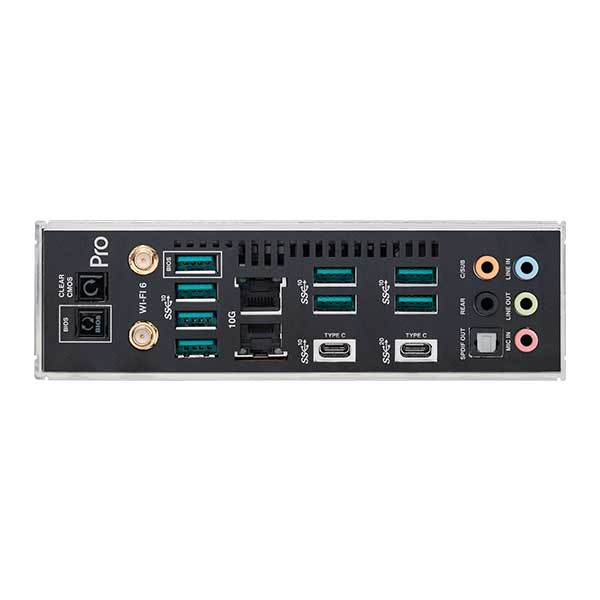

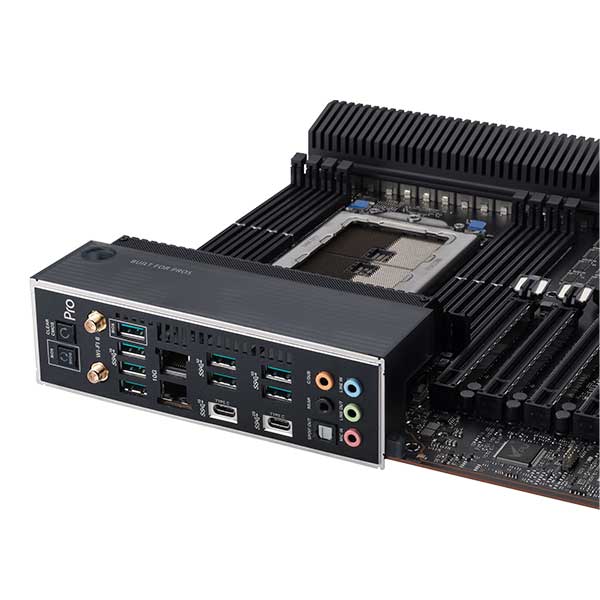

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C)
1 x ASUS Wi-Fi Module
2 x Intel X550-AT2 dual 10Gb Ethernet ports
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Intrernal I/O Connectors Fan and Cooling related
 1 x 4-pin CPU Fan header(s)
 1 x 4-pin CPU OPT Fan header(s)
 6 x 4-pin Chassis Fan header(s)
 1 x VRM heatsink Fan header
 1 x Chipset Fan header
Power related
 1 x 24-pin Main Power connector
 2 x 8-pin +12V Power connector
 2 x 6-pin PCIe Graphics Card connector
 1 x 8-pin PCIe Power connector
Storage related
 3 x M.2 slots (Key M)
 8 x SATA 6Gb/s ports
 2 x U.2 slots
USB
 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
BMC Related
 1 x BMC switch
 1 x IPMI switch
 1 x Messange LED header
 1 x Micro SD card socket
 2 x LAN LED header(s)
 1 x Location LED header
 1 x Location button header
 1 x PSU_SMB header
 1 x SMART_PSU switch
 1 x VGA switch
 1 x VGA header
 1 x VPP_I2C header
Miscellaneous
 1 x COM Port header
 1 x FlexKey button
 1 x Front Panel Audio header (AAFP)
 1 x SPI TPM header (14-1pin)
 1 x Start button
 1 x 20-3 pin System Panel header with Chassis intrude function
 1 x RTC Battery header
 1 x Thermal Sensor header
Special Features ASUS Q-Design
 - Q-Code
 - Q-Connector
 - Q-DIMM
 - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
 - Q-Slot
ASUS Thermal Solution
 - M.2 heatsink
ASUS EZ DIY
 - BIOS FlashBack button
 - BIOS FlashBack LED
 - Clear CMOS button
 - ProCool II
 - Pre-mounted I/O shield
 - SafeSlot
Bespoke Motherboard Design & Business Focused Features
 - Event Log in ASMB9-iKVM
 - 24/7 Reliability
 - Overcurrent Protection
ASMB9-iKVM for KVM-over-Internet
Software Features ASUS Exclusive Software
Armoury Crate
ASUS CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS:X Ultra
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
 - ASUS CrashFree BIOS 3
 - ASUS EZ Flash 3
 - ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
 6 x SATA 6Gb/s cables
 1 x VGA cable
Miscellaneous
 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
 1 x Hyper M.2 X16 Gen 4 Card
 3 x M.2 Rubber Package(s)
 3 x M.2 SSD screw package(s)
 1 x Q-connector
Installation Media
 1 x Support DVD
Documentation
 1 x User manual
Operating System Windows 11 ready
Windows 10 64-bit
Form Factor Extended ATX
30.98cm*33.02cm

JAN:0195553066266
